Benchmarks

This page collects the performance measurements for beman::big_int, together with the methodology behind them. There are two complementary stories:

Small-value optimization compares big_int against the native builtin integer types on the four basic operations, showing that small values are handled without heap allocation.
Large integers compares big_int against the two established arbitrary-precision libraries, Boost.Multiprecision’s cpp_int and GMP (gmp_int), at operand sizes from thousands to millions of digits, and explains the algorithm tiers that get it there.

The two suites were measured on different machines and build configurations, so do not compare a number from one against a number from the other; each table is internally consistent and notes its own environment.

Small-value optimization: `big_int` vs the builtin integer types

A basic_big_int<N> keeps an inplace buffer of ceil(N / 64) limbs, and as long as a value’s magnitude fits there it is stored directly inside the object with no heap allocation (see the type design). The default big_int is basic_big_int<64>, so a single 64-bit limb lives inplace; basic_big_int<128> keeps two. This suite quantifies that optimization by timing +, -, *, and / for big_int next to the native builtin integer types, using Google Benchmark for the measurement loop. It is built from small_value_optimization.gbench.cpp.

Three tiers are measured for every operation:

64-bit tier — std::int64_t against the default big_int (basic_big_int<64>, one inplace limb). Operands are sized so the result stays within 64 bits, so big_int never leaves inplace storage.
128-bit tier — compares int128 with basic_big_int<128> (two inplace limbs), the natural same-width counterpart. Built only where int128 exists.
Large (heap) contrast — the same big_int operations on multi-limb, heap-allocated operands (roughly 2^320 and 2^256), to show the cost once a value outgrows the inplace buffer and the optimization no longer applies.

Building and running

Google Benchmark is pulled in with CMake FetchContent (just like GoogleTest), gated behind the BEMAN_BIG_INT_BUILD_BENCHMARKS option. It is off by default and only meaningful in a release build, so dedicated release presets enable it:

# Pick the preset for your platform: gcc-release-benchmarks,
# llvm-release-benchmarks, appleclang-release-benchmarks, msvc-release-benchmarks.
cmake --preset appleclang-release-benchmarks
cmake --build --preset appleclang-release-benchmarks \
    --target beman.big_int.benchmarks.small_value_optimization

./build/appleclang-release-benchmarks/tests/beman/big_int/perf/beman.big_int.benchmarks.small_value_optimization

Equivalently, add -DBEMAN_BIG_INT_BUILD_BENCHMARKS=ON to any release preset. The executable accepts the usual Google Benchmark flags, for example --benchmark_repetitions=7, --benchmark_filter=multiply, or --benchmark_min_time=0.2s.

Results

Representative medians in nanoseconds per operation, measured on Apple silicon with AppleClang and a RelWithDebInfo build. Absolute numbers are machine-dependent.

Operation	`std::int64_t`	`big_int` (1 limb)	`__int128`	`basic_big_int<128>` (2 limbs)	`big_int` (multi-limb, heap)
`+`	0.23	3.8	0.25	3.4	15.7
`-`	0.23	4.2	0.24	3.9	16.1
`*`	0.23	1.7	0.37	5.0	30.1
`/`	0.46	6.2	3.2	11.6	49.8

How to read this:

The small-value optimization is the gap between the small-big_int columns and the heap column. A one- or two-limb big_int operation costs a few nanoseconds and allocates nothing, while the same operation on a multi-limb operand is roughly 4x—10x slower because every result is heap-allocated. Keeping small values inplace is what closes that gap.
The builtin columns land at a few tenths of a nanosecond because the operation itself is nearly free and the timing is dominated by a fixed DoNotOptimize fence that stops the compiler from hoisting or deleting the work. That fence is identical in every cell, so read the table across a row (relative cost) rather than as the absolute cost of a single instruction.
Even against the builtins the small-value path stays within a small constant factor, and for division the two-limb path of big_int (11.6 ns) is in the same ballpark as the native __int128 divide (3.2 ns), which is itself a library call rather than a single instruction.

Large integers: `big_int` vs Boost.Multiprecision and GMP

At large operand sizes the relevant comparison is against the established arbitrary-precision libraries: Boost.Multiprecision’s cpp_int and GMP (wrapped by Boost as gmp_int). GMP is hand-coded assembly in its hot paths and is the industry standard for performance, so it is the natural baseline.

Everything in this section was measured in September 2026 on an Intel® Core™ i9-11900K (turbo enabled, each run pinned to one core) with GCC 13 and the gcc-release preset (RelWithDebInfo, -O2), against GMP 6.3.0 and Boost 1.91. big_int was built with the AVX-512 IFMA schoolbook kernels (-DBEMAN_BIG_INT_X86_64_AVX512_IFMA=ON, which also enables the BMI2/ADX kernels for small shapes; see the build guide) and the SIMD floating-point FFT (-DBEMAN_BIG_INT_SIMD_MUL=ON, see its floating-point requirements), the fastest configuration on this machine (see below). In the comparison tables, bracketed values are time relative to the fastest of the three libraries at that width, where [1.0] is best.

Choosing the x86-64 kernel configuration

On x86-64 the schoolbook kernels are selected at compile time: the generic baseline kernels, the BMI2/ADX kernels, or the AVX-512 IFMA kernels. All three builds were timed through the public operators with the programs of the comparison tables below. IFMA is the fastest at every width for multiplication and from 512 limbs for division. Below that the three tie for division, because Knuth long division does not call the multiplication kernels. Times are microseconds per operation; division divides a dividend of the stated width by a divisor half as wide.

Operation, 64-bit limbs	generic	BMI2/ADX	AVX-512 IFMA
`*`, 128	5.5	4.1	1.8
`*`, 1,024	153	122	62
`*`, 8,192	2,900	2,450	1,550
`*`, 32,768	18,500	16,200	10,700
`/`, 128	3.7	3.6	3.7
`/`, 1,024	87	79	66
`/`, 8,192	2,180	1,840	1,200
`/`, 32,768	16,700	14,200	8,930

The SIMD FFT combines with the IFMA kernels. It only replaces the FFT tier, the integer NTT of the default build, with a double-precision transform using AVX2 kernels that is about twice as fast. So it changes nothing below the FFT gate, and its FFT gate for this combination was fitted as described under the cost model below. Timed end to end through the public operators with shape_sweep.cpp on 34 shapes (balanced and unbalanced products up to 1,000,000 limbs, and squares), it was up to 1.8x faster than the IFMA build with the integer NTT. It was 3% and 4% slower at two balanced sizes (50,000 and 80,000 limbs), band tops where the SIMD FFT and Toom-Cook 8.5 are within a few percent of each other and the gate takes the FFT (see the cost model below). Times are the median of five rounds, in milliseconds:

Operation, 64-bit limbs	IFMA, integer NTT	IFMA + SIMD FFT	Speedup
`*`, 80,000 x 80,000	35.4	36.9	0.96
`*`, 100,000 x 100,000	48.2	39.9	1.21
`*`, 131,072 x 131,072	70.0	66.5	1.05
`*`, 200,000 x 200,000	127	82.2	1.55
`*`, 400,000 x 400,000	308	171	1.80
`*`, 800,000 x 800,000	681	377	1.81
`*`, 1,000,000 x 1,000,000	1,070	761	1.41
`*`, 30,000 x 600,000	192	148	1.30
`*`, 131,072 x 524,288	281	159	1.76
`*`, 16,000 x 1,000,000	246	246	1.00
`x * x`, 400,000	216	135	1.60
`x * x`, 1,000,000	704	603	1.17

At 1,000,000 limbs, a band start, the integer build uses Toom-Cook 8.5 and the SIMD FFT is still 1.4x faster. Division only gains where its internal products reach the FFT: its rows below are unchanged up to 131,072 limbs.

Real-world gauge: ECDSA over secp256k1

This test gives an intuitive, end-to-end view of big-integer arithmetic in elliptic-curve algebra: round-trip 256-bit ECDSA (secp256k1) key generation, signing, and verification, run once with pre-defined seeds and again over 32 trials with random seeds. It is not a tuned ECDSA implementation but an overall performance gauge at modest integer widths, exercising a wide range of binary and unary operations and allocations, and it is timed end to end (the median of five runs). Runs with beman::big_int, boost::cpp_int, and boost::gmp_int are compared. At 256 bits the operands are four limbs, below every kernel and FFT threshold, so the build configuration does not matter here. Source: elliptic_ecc.perf.cpp.

Integer type	Time [s]	Relative
`beman::big_int`	0.66	1.3
`boost::cpp_int`	0.59	1.2
`boost::gmp_int`	0.50	1.0

Multiplication

Multiplication graduates to successively higher-order algorithms as the operand limb count grows: schoolbook, Karatsuba, Toom-Cook 3, 4, 6.5 and 8.5, and finally an FFT tier (a small-prime number-theoretic transform). Where each tier takes over depends on the machine and on which basecase kernel is in use, so the crossovers are per-configuration constants in detail/mul_impl.hpp; the table below lists the values the library currently ships (the shorter operand’s limb count, integer non-SIMD path). The BEMAN_BIG_INT_SIMD_MUL (floating-point NTT) configurations use the Toom thresholds of the table with their own FFT gates. The AVX-512 IFMA build with the SIMD FFT has a cost model of its own (below); the other x86-64 SIMD configurations were not retuned and keep their earlier FFT floors.

Current crossovers

Constant (limbs)	x86-64 generic	x86-64 BMI2/ADX	x86-64 AVX-512 IFMA	AArch64
Karatsuba (`karatsuba_cutoff`)	48	47	260	112
Karatsuba leaf (`karatsuba_fallback`)	40	40	230	80
Toom-Cook 3 (`toom_cook_3_cutoff`)	400	400	1,600	300
Toom-Cook 4 (`toom_cook_4_cutoff`)	1,400	1,600	4,000	1,400
Toom-Cook 6.5 (`toom_cook_6_5_cutoff`)	1,400	1,800	4,000	1,400
Toom-Cook 8.5 (`toom_cook_8_5_cutoff`)	1,400	7,000	6,000	15,000 (rarely reached)
FFT floor (`fft_mul_min_limbs`)	3,000 (cost model)	3,000 (cost model)	300,000 (cost model)	1,400 (cost model)
Slicing: Karatsuba-zone ratio; large zone from (ratio)	7/4; 12,000 (9/8)	7/4; 16,000 (9/8)	7/4; 30,000 (4/3)	7/4; 1,400 (3/2)
Squaring: schoolbook below (`square_long_cutoff`)	5	10	10	5
Squaring: Karatsuba (`square_karatsuba_cutoff`)	72	120	257	168
Squaring: Toom-Cook 3 (`square_toom_cook_3_cutoff`)	300	440	4,200	500
Squaring: FFT floor (`square_fft_min_limbs`)	3,000 (cost model)	3,000 (cost model)	500,000 (cost model)	1,400 (cost model)
Division: Burnikel-Ziegler divisor / quotient gate	160 / 64	160 / 64	160 / 64	40 / 10
Division: Barrett from divisor of (`barrett_march_cutoff`)	512	512	512	9
Base conversion: input ladder leaf, chunks (`fast_input_basecase_chunks`)	512	512	512	16
Base conversion: `from_chars` kernel from, chunks (`fast_input_charconv_min_chunks`)	8	8	8	3

The AArch64 column was measured on an Apple M4 Max end to end through the public operators (balanced and unbalanced shapes, September 2026) and is also used for other AArch64 cores. The x86-64 columns were tuned the same way on an Intel® Core™ i9-11900K (GCC, gcc-release, September 2026), except the division and base-conversion rows, which keep the earlier per-machine values. The AVX-512 IFMA column raises the Karatsuba and Toom thresholds because the IFMA schoolbook kernel stays ahead much longer. On generic x86-64 the Toom-4, 6.5 and 8.5 cutoffs coincide at 1,400, so the ladder is Toom-Cook 3 up to 1,400 limbs and Toom-Cook 8.5 above. The hand-written x86-64 schoolbook kernels can also run tens of percent slower for a few relative buffer alignments (4 KiB aliasing), which shows up as noise in timings at some sizes.

Two mechanisms make these thresholds shape-aware rather than functions of the shorter operand alone:

Slicing. The Toom-Cook kernels only accept near-balanced operands (Toom-3 up to 3:2, Toom-4 up to 4:3, Toom-6.5 up to 7:6, Toom-8.5 up to 9:8), and an unbalanced product outside that range used to cascade all the way down to Karatsuba. Instead, a product whose long/short ratio exceeds a per-size limit is cut into pieces as long as the shorter operand; each piece is a balanced product handled by the normal ladder (or the FFT) and the partial results are accumulated. The limit comes from a small table of size zones per configuration (mul_slice_z* in detail/mul_impl.hpp), and a product is also sliced whenever Toom-3 would refuse the shape.
FFT cost model. The FFT time is a step function of the power-of-two transform length, while the Toom ladder is smooth, so a single cutoff is wrong inside every transform-length band. The FFT tier is chosen by an integer cost model: use the FFT when the shorter operand has at least fft_mul_min_limbs limbs and L * log2(L) * den ⇐ num * max * isqrt(min), where L is the transform length (the integer AVX-512 IFMA build uses a steeper shape, see below). The model is on for the integer x86-64 and AArch64 builds and covers unbalanced shapes through max. With the SIMD FFT it is on for AArch64 and for the AVX-512 IFMA build (num/den 15/64 for multiplication and 75/512 for squaring, floors 16,000 and 8,000); the generic and BMI2/ADX SIMD configurations were not retuned and still use a plain floor. Sliced pieces consult the same gate. The model matters on x86-64: the earlier single floors (24,000 limbs for generic and BMI2/ADX) sent products to the scalar NTT although Toom-Cook 8.5 stays faster until about 40,000 to 75,000 limbs balanced (a balanced 28,809-limb product was 2.0x (generic) and 2.3x (BMI2/ADX) slower with the FFT). With the IFMA basecase, Toom-Cook 8.5 stays faster than the integer NTT up to about 720,000 limbs balanced, and than the SIMD FFT up to about 80,000 (see the tier timings below).

Both AVX-512 IFMA gates were fitted to the forced Toom-Cook 8.5 and FFT tiers (balanced, up to 3,276,000 limbs) and to FFT-against-Toom timings of unbalanced products (1:1.5 to 1:16). Whether the FFT wins depends on how full its power-of-two transform is, so it can win, lose and win again as the longer operand grows: with a 300,000-limb shorter operand the integer NTT is 1.2x faster at 1:4, 1.3x slower at 1:6 and on par at 1:8.

With the SIMD FFT the model keeps its square-root shape. The earlier constants were fitted to balanced sizes only and left the FFT unused on unbalanced products where it is up to 1.3x faster (100,000 x 150,000 limbs, for example). The refit picks the faster tier on 99% of the balanced sizes and 93% of 67 unbalanced shapes (shorter operands of 16,000 to 1,300,000 limbs, longer ones up to 6,400,000), and the rest are within 1.12x. The balanced sizes it gets wrong are near-ties: at 50,000 and 80,000 limbs the FFT is 3% to 4% slower end to end, but no constant avoids them without also giving up unbalanced products that are up to 1.3x faster with the FFT. On 10 held-out shapes it picked the faster path for 7; the other three (45,000 x 180,000, 75,000 x 600,000 and 120,000 x 240,000) lose 1.07x to 1.15x, because a product the gate rejects is sliced and its pieces then take the FFT one by one.
The integer IFMA build crosses over at millions of limbs, where the NTT’s time grows about 2.4x per transform length (memory traffic) instead of the 2.1x of L * log2(L), and sliced Toom-Cook 8.5 grows like max * min^0.35. With the square-root shape no single constant fits: the break-even value drifts by about 0.8x per transform length, and the earlier 7/64 and 6/64 took the NTT at every band start from about 900,000 limbs on, up to 1.9x (multiplication) and 2.1x (squaring) slower. This build therefore compares L * log2(L)^3 * den against num * max * cbrt(min) (num/den 298 for multiplication and 268 for squaring). On the fitting data it picks the faster tier for 93% of the balanced sizes and 94% of 52 unbalanced shapes (shorter operands of 300,000 to 1,600,000 limbs, longer ones up to 8,000,000), and the rest are within 1.13x. The multiplication floor of 300,000 limbs is the smallest shape measured, below which the NTT loses anyway. The squaring floor of 500,000 is below the first square the model accepts (788,000).

Checked end to end on shapes that were not part of the fit, the integer IFMA gate picked the faster path for all 16 products (within 1%; for 750,000 x 3,000,000 the dispatcher’s own split beats both forced paths) and was never slower than the old gate beyond noise. Times are the median of three rounds, in milliseconds:

Operation, 64-bit limbs	Old gate	New gate	Faster forced path
`*`, 900,000 x 900,000	1,600	928	926 (Toom)
`*`, 1,100,000 x 1,100,000	1,620	1,200	1,200 (Toom)
`*`, 1,550,000 x 1,550,000	1,640	1,650	1,640 (FFT)
`*`, 2,200,000 x 2,200,000	3,980	3,010	3,000 (Toom)
`*`, 350,000 x 1,400,000	1,230	1,060	1,060 (Toom)
`*`, 750,000 x 3,000,000	3,940	2,680	2,890 (Toom)
`*`, 1,200,000 x 6,000,000	8,990	6,770	6,770 (Toom)
`x * x`, 700,000	484	438
`x * x`, 2,500,000	2,870	2,420

The hand-written x86-64 BMI2/ADX and AVX-512 IFMA kernels (see the build guide) move these thresholds; the IFMA schoolbook gate is itself shape-aware, taking the IFMA kernel earlier the more lopsided the operands are.

Tier-by-tier timings

To isolate each tier, a stress benchmark (multiplication_stress_bench.test.cpp) calls the kernels directly on balanced operands, bypassing the dispatcher. The schoolbook tier is the runtime basecase kernel (the IFMA kernel here). Every higher tier is forced at the top level through its benchmark-only cutoff_override. Its sub-products recurse in the same tier down to that tier’s own cutoff and then drop to the lower tiers at the production cutoffs, so the Toom-Cook 4 column, for example, is the ladder up to Toom-Cook 4. The FFT column is the SIMD FFT alone. Each point is the mean over enough back-to-back calls to fill a fraction of a second. A forced tier also runs at sizes where the dispatcher would never choose it, and only balanced shapes are timed, so the crossovers read off these curves are not the shipped thresholds. Those were tuned end to end through the public operators on balanced and unbalanced shapes.

The table shows microseconds per multiplication. The fastest tier at each width is in bold; n/a marks a tier not measured at that width.

64-bit limbs	Binary digit width	Schoolbook	Karatsuba	Toom-Cook 3	Toom-Cook 4	Toom-Cook 6.5	Toom-Cook 8.5	FFT (NTT)
256	16,384	6.16	5.86	n/a	n/a	n/a	n/a	n/a
1,000	64,000	90.4	60.3	61.3	72.6	79.6	n/a	431
2,000	128,000	361	188	180	198	201	223	904
10,000	640,000	n/a	2,470	2,220	2,270	2,040	1,980	4,080
32,000	2,048,000	n/a	n/a	12,800	12,000	10,800	10,200	16,300
80,000	5,120,000	n/a	n/a	n/a	45,300	37,800	35,200	35,200
100,000	6,400,000	n/a	n/a	n/a	n/a	53,100	48,200	37,600
300,000	19,200,000	n/a	n/a	n/a	n/a	228,000	209,000	148,000
800,000	51,200,000	n/a	n/a	n/a	n/a	n/a	778,000	356,000
1,000,000	64,000,000	n/a	n/a	n/a	n/a	n/a	1,050,000	725,000

The IFMA schoolbook kernel stays fastest up to about 240 limbs, close to the shipped Karatsuba cutoff of 260.
Each higher tier first wins a few sizes before it stays ahead for good, because of noise and each tier’s split-size steps. Toom-Cook 3 stays ahead of Karatsuba from about 2,700 limbs, and Toom-Cook 6.5 ahead of Toom-Cook 4 from about 3,300. Toom-Cook 8.5 pulls ahead of Toom-Cook 6.5 from about 8,000 limbs; the two stay within a few percent up to about 21,000. Toom-Cook 4 only overtakes Toom-Cook 3 for good at about 11,800 limbs, above where Toom-Cook 6.5 has already taken over. This is consistent with the IFMA ladder giving Toom-Cook 4 and 6.5 the same cutoff (4,000 limbs), which leaves no Toom-Cook 4 zone.
The FFT time is a step function of the power-of-two transform length, and the FFT cost model accounts for these steps. The SIMD FFT first matches Toom-Cook 8.5 at the top of the band that ends near 51,000 limbs (18.6 ms each at 50,000). It loses again just past the step (33.2 vs 26.7 ms at 65,000) and stays ahead from about 80,000 limbs: 1.3x faster at 100,000, 1.4x at 300,000 and 2.2x at 800,000.
The integer NTT of the default build is about 2x slower than the SIMD FFT (673 vs 356 ms at 800,000 limbs). With the IFMA basecase it only overtakes Toom-Cook 8.5 at about 720,000 limbs, and only in the upper part of each band, which the IFMA build’s gate handles as described above. On the generic and BMI2/ADX builds, whose basecase is slower, the integer NTT takes over at about 40,000 to 75,000 limbs balanced (see above).

Empirical complexity

The empirical order x in t ~ n^x is the least-squares slope of log time against log size over the upper half of each tier’s measured range, from the same data:

Tier	Fitted over (limbs)	Empirical `x`	Theoretical `x`
Schoolbook	192 — 2,000	1.97	2
Karatsuba	700 — 10,000	1.62	`log_2(3)` approximately 1.585
Toom-Cook 3	2,700 — 32,000	1.53	`log_3(5)` approximately 1.465
Toom-Cook 4	3,000 — 80,000	1.48	`log_4(7)` approximately 1.404
Toom-Cook 6.5	6,000 — 300,000	1.40	`log_6.5(12)` approximately 1.328
Toom-Cook 8.5	14,000 — 1,000,000	1.35	`log_8.5(16)` approximately 1.294
FFT (SIMD)	7,500 — 1,000,000	1.03	1 (times `log n`)

Karatsuba and the Toom-Cook tiers fit 0.04 to 0.08 above their theoretical exponents. A tier’s sub-products below its own cutoff run the lower tiers, which have higher exponents, and the linear evaluation and interpolation passes add to it. The FFT’s n log n shows up as an exponent slightly above 1.

The plots below show the same data from 2 to 1,000,000 limbs: the time per operation of each tier (top) and its time relative to the fastest tier measured at that size (bottom). Vertical lines mark the size after which each tier stays ahead of the tier below it.

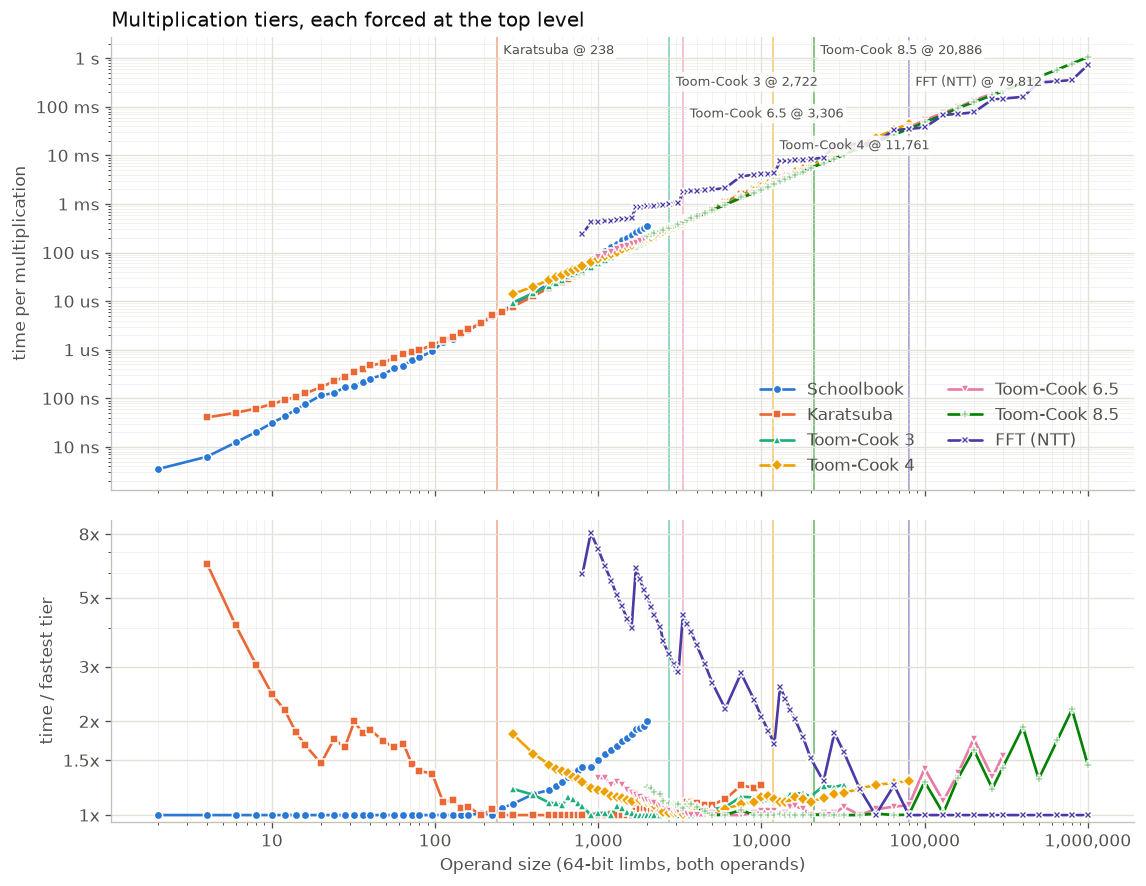

Figure 1. Multiplication time per tier vs operand limb count, balanced operands

Squaring has its own ladder with the same tiers, built on the dedicated square kernels, with the cutoffs listed in the crossover table above. The IFMA square kernel works natively up to 256 limbs, so the schoolbook squaring curve jumps just above that, exactly where the shipped squaring Karatsuba cutoff (257) takes over. Toom-Cook 8.5 squaring is harder for the FFT to beat than Toom-Cook 8.5 multiplication: the SIMD FFT square stays ahead only from about 270,000 limbs.

Figure 2. Squaring time per tier vs operand limb count

`big_int` vs `cpp_int` vs `gmp_int`

The result of a multiplication adds the widths of its operands, so each row multiplies two operands of the stated width and the product is twice as wide. The times include allocating the result, for all three libraries. Source: mul_big_int_vs_gmp_cpp.perf.cpp; pass an operand width in limbs (and optionally a trial count) on the command line to reproduce a row.

64-bit limbs	Bit width	Approx base-10 digits	us per mul `big_int`	us per mul `cpp_int`	us per mul `gmp_int`
128	8,192	2,500	1.85 [1.0] (see 1)	7.21 [3.9]	2.84 [1.5]
512	32,768	9,900	19.8 [1.0]	65.3 [3.3]	21.3 [1.1]
1,024	65,536	20,000	62.6 [1.1]	196 [3.5]	56.8 [1.0]
2,048	131,072	39,000	228 [1.5]	593 [3.9]	154 [1.0]
8,192	524,288	158,000	1,590 [1.8]	5,280 [6.1]	872 [1.0]
32,768	2,097,152	631,000	10,900 [2.5]	47,100 [11]	4,350 [1.0]
131,072	8,388,608	2,525,000	72,300 [3.4] (see 2)	426,000 [20] (see 3)	21,500 [1.0]
524,288	33,554,432	10,100,000	340,000 [3.1]	3,780,000 [34]	110,000 [1.0]

With the IFMA basecase, big_int is faster than GMP from about 32 to 512 limbs (1.6x at 64 limbs, 1.5x at 128) and within 1.1x of it at 1,024 limbs.
Above that, GMP pulls ahead gradually, to 1.8x at 8,192 limbs and 3.4x at 131,072, a near-tie between the SIMD FFT and Toom-Cook 8.5 (see the cost model above). From there the SIMD FFT keeps the gap from growing: 3.0x at 262,144 limbs and 3.1x at 524,288.
cpp_int only reaches as high as Karatsuba multiplication, so both big_int and gmp_int pull ahead at medium-high digit counts; the lead big_int has over cpp_int grows to about 6x at 131,072 limbs and 11x at 524,288.

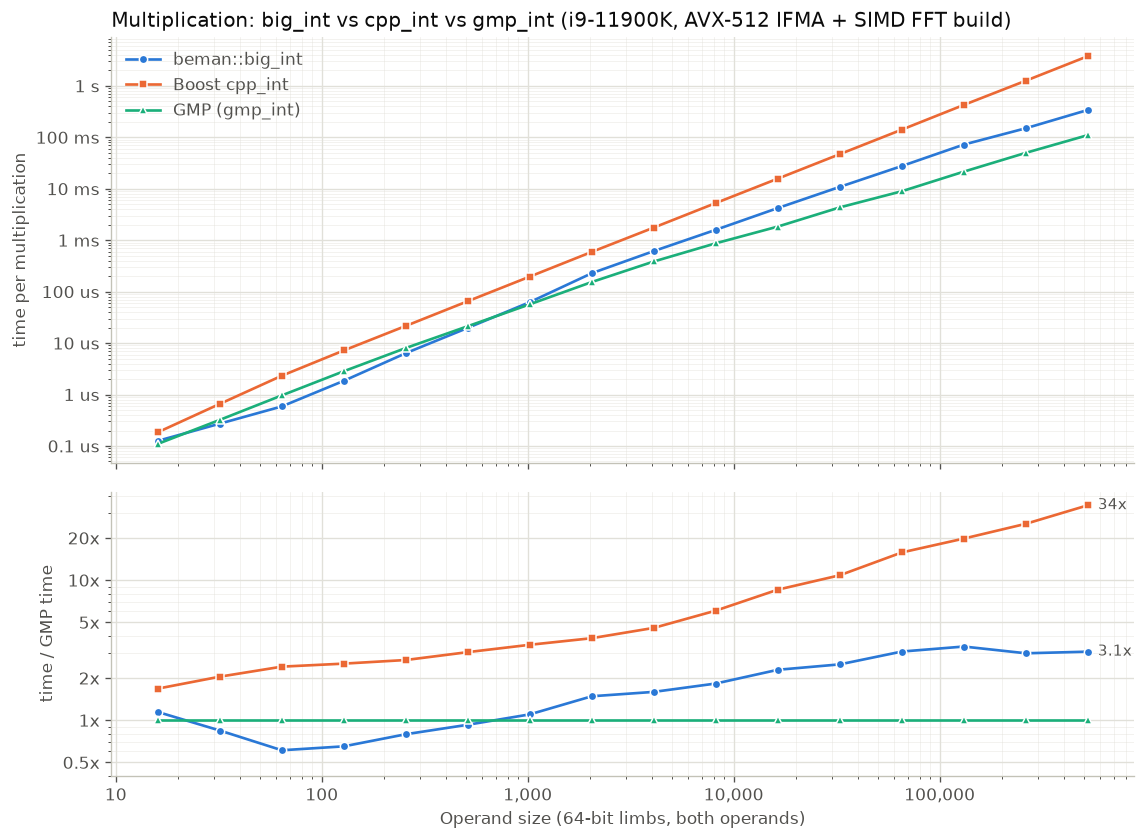

big_int vs cpp_int vs gmp_int multiplication plot

Figure 3. Multiplication time and time relative to GMP vs operand limb count

A mixed sweep of 16,384 products with random widths from 4 to 16,384 limbs (the second operand 0.5x to 1.5x as wide as the first) checks every result against GMP and averages 2.2x GMP’s time, a mean dominated by the widest operands (all below the FFT gate). See mul_big_int_vs_gmp_cpp.limbs.cpp.

Division

Division uses Knuth long division for small divisors and crosses over to the Burnikel-Ziegler algorithm at a divisor of 40 limbs (AArch64) or 160 limbs (x86-64), and to Barrett (reciprocal-based) division for long dividends; above that its performance is driven by the underlying multiplication. The gates are listed in the crossover table above.

Tier-by-tier timings

A stress benchmark (division_stress_bench.test.cpp) calls the three kernels directly, including their scratch setup, and takes the median over three random operand pairs of the best of five repetitions. On balanced 2n / n shapes:

Burnikel-Ziegler called below its gate runs the schoolbook kernel, so the two curves coincide up to 128-limb divisors. From the 160-limb gate on it pulls away: 1.6x faster at 192 limbs, 2.6x at 512 and 8.8x at 4,096.
Barrett is 2x to 3x slower than Burnikel-Ziegler on balanced shapes up to 32,768-limb divisors, narrowing to 1.15x at 262,144 limbs, where both run on the SIMD FFT. It is only used when the dividend is much longer than the divisor, where the reciprocal is computed once and reused over many blocks. With a 16,384-limb dividend it is 1.8x faster than Burnikel-Ziegler at a 512-limb divisor, 1.5x at 1,024 and 1.2x at 2,048, and slower again at 4,096.

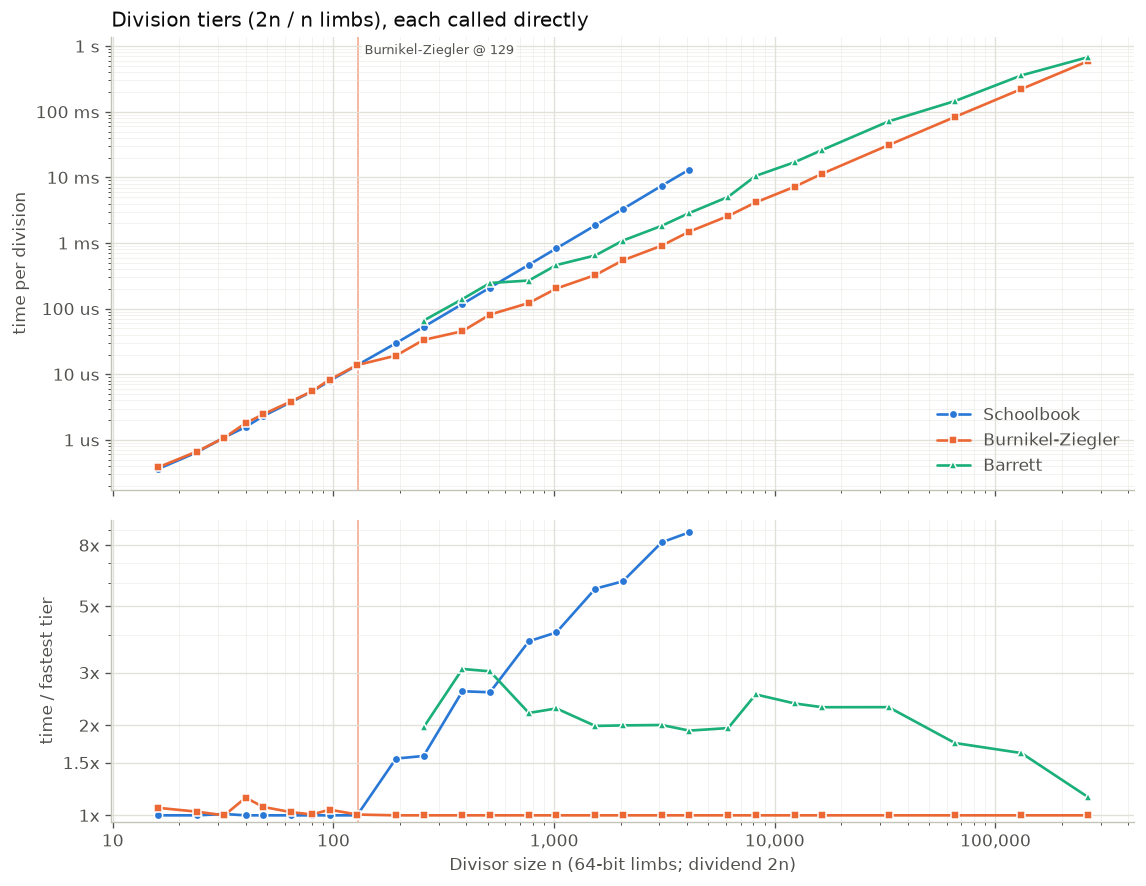

Figure 4. Division time per tier vs divisor limb count, balanced 2n / n

`big_int` vs `cpp_int` vs `gmp_int`

As with multiplication, only the division itself is timed, with a stopwatch read immediately before and after the operation and the times summed and averaged over many trials. Each row divides an N-digit numerator by an N/2-digit denominator, producing an N/2-digit quotient. Source: div_big_int_vs_gmp_cpp.perf.cpp.

64-bit limbs	Bit width	Approx base-10 digits	us per div `big_int`	us per div `cpp_int`	us per div `gmp_int`
128	8,192	2,500	3.70 [3.0] (see 1)	6.72 [5.4]	1.25 [1.0]
512	32,768	9,900	24.8 [1.9]	80.0 [6.2]	12.9 [1.0]
1,024	65,536	20,000	66.5 [1.7]	303 [7.9]	38.6 [1.0]
2,048	131,072	39,000	199 [1.8]	1,250 [11] (see 2)	110 [1.0]
8,192	524,288	158,000	1,210 [1.6]	18,300 [25]	736 [1.0]
32,768	2,097,152	631,000	9,060 [2.2]	302,000 [75]	4,040 [1.0]
131,072	8,388,608	2,525,000	67,200 [3.3]	4,990,000 [242]	20,600 [1.0]

Below the Burnikel-Ziegler gate GMP is 1.6x to 3.3x faster. The gap peaks at 3.3x for a 256-limb dividend (a 128-limb divisor, just below the 160-limb gate). From 512 limbs on, big_int stays within 1.6x to 3.3x of GMP.
cpp_int uses a variant of Knuth long division at all limb counts, which is quadratic, so big_int and gmp_int pull ahead rapidly at medium-high digit counts; the lead big_int has over cpp_int grows to about 15x at 8,192 limbs and 74x at 131,072.

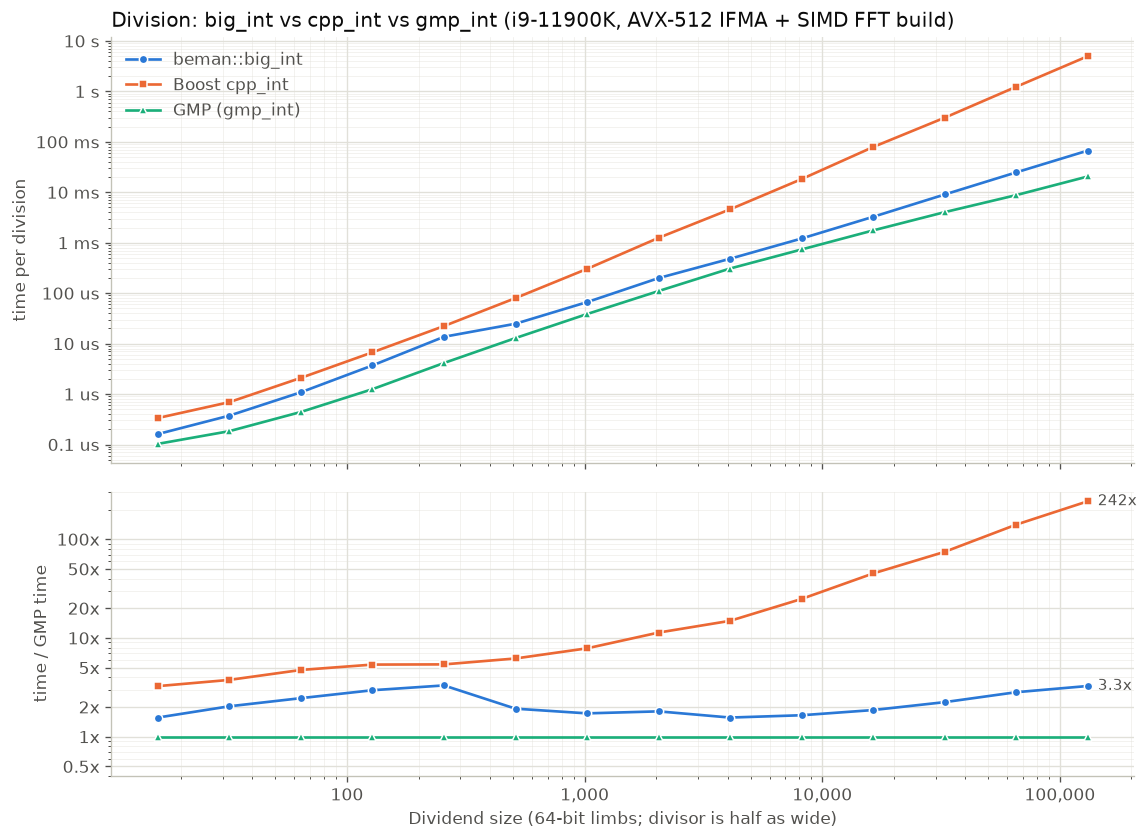

big_int vs cpp_int vs gmp_int division plot

Figure 5. Division time and time relative to GMP vs dividend limb count

A mixed sweep of 16,384 quotients with divisors of 4 to 16,384 limbs and dividends 1.1x to 2.1x as wide checks every result against GMP and averages 2.0x GMP’s time. See div_big_int_vs_gmp_cpp.limbs.cpp.

Reproducing the measurements

The two stress benchmarks are test executables that only run their sweep when BEMAN_BIG_INT_RUN_BENCHMARKS is defined, and they print CSV:

cmake --preset gcc-release -DBEMAN_BIG_INT_X86_64_AVX512_IFMA=ON -DBEMAN_BIG_INT_SIMD_MUL=ON \
    -DCMAKE_CXX_FLAGS=-DBEMAN_BIG_INT_RUN_BENCHMARKS=1
cmake --build build/gcc-release --target beman.big_int.tests.multiplication_stress_bench \
    beman.big_int.tests.division_stress_bench
cd build/gcc-release/tests/beman/big_int
taskset -c 2 ./beman.big_int.tests.multiplication_stress_bench | grep -E '^[a-z0-9.-]+,' > crossover_tuning_data.csv
taskset -c 2 ./beman.big_int.tests.division_stress_bench | grep -E '^[a-z-]+,' > division_tuning_data.csv
python3 <source-dir>/tests/beman/big_int/perf/plot_crossover.py crossover_tuning_data.csv \
    --division division_tuning_data.csv

The .perf.cpp and .limbs.cpp programs need Boost.Multiprecision and GMP and are compiled by hand against the library, with the same kernel macros as the library build (here -DBEMAN_BIG_INT_X86_64_BMI2_ADX=1 -DBEMAN_BIG_INT_X86_64_AVX512_IFMA=1 -DBEMAN_BIG_INT_SIMD_MUL). plot_vs_libraries.py plots a CSV of their results (columns op,limbs,trials,big_int_us,cpp_int_us,gmp_int_us). The data behind the figures on this page is kept next to the scripts as crossover_tuning_data.csv, division_tuning_data.csv and vs_libraries_data.csv.

Base conversion and string representations

Sub-quadratic base conversion is the basis for the library’s <charconv> support. This includes the to_chars and from_chars functions and the primitives beneath them. These functions provide the interface for converting big integers to and from their string representations. The performance of these operations is governed primarily by the efficiency of the underlying multiplication and division algorithms described above. This holds for converting to and from string representations in any base other than 16. For base 16, the string conversions have linear complexity.

Order-N operations

Addition, subtraction, bit-shift, comparison, and hashing are linear in the limb count and are not tabulated separately here. Their behavior at builtin widths, where the small-value optimization keeps them allocation-free, is covered in the small-value section above.

Architecture-specific optimizations

Dedicated architecture-specific optimizations using hand-written assembly can be very advantageous regarding runtime performance for this library. This is often the case for both the reference application as well as for potential future adaptions of the library to other architectures.

A particularly effective and straightforward assembly-based optimization is hand-coding the schoolbook long multiplication algorithm in the processor’s assembly dialect. The simple optimization of schoolbook long multiplication percolates through many algorithms in the library. Not only is schoolbook long multiplication itself accelerated, but also all the classical multiplication splitting-algorithms Karatsuba and all orders of Toom-Cook are optimized as well. This is because after the splitting of long limb spans is performed, the real work of these algorithms still falls through to basecase schoolbook long multiplication. Simultaneously sub-quadratic large-limb-count long division and base conversion directly benefit since they are built atop the multiplication algorithms and directly benefit from their optimizations.

Experience shows that with one single assembly file performing basecase schoolbook long multiplication stark improvements in the performance of nearly the entire library can be achieved.

A proof of concept is included for the popular x86_64 architecture in its generic form. We have implemented basecase schoolbook long multiplication in hand-coded assembly for x86_64 on compiler systems GCC, clang and MSVC, the detections of which happen at compile time. Beyond the generic kernels, BMI2/ADX and AVX-512 IFMA variants are selected at compile time when the target supports them (see the build guide); the table below predates them and shows the generic kernel only.

An overview of multiplication performance is shown in the table below. Multiplication operations performed over a wide range of limb counts with and without assembly optimization have been compared with the same calculations for GMP (gmp_int). The heats ran 131,072 trials for multiplication with limb counts ranging from 16-2,048 and for division with limb counts ranging from 16-3,072.

Results for multiplication are explicitly shown in the table below. Similar performance improvements can be observed for division. For this measurement, an Intel® Core™ i9-11900K at 3.50GHz has been used.

system	time C++ [us/mul]	time ASM [us/mul]	improvement [percent]	ratio ASM/`gmp_int`
`big_int` (GCC/GAS)	305	210	31	2.2
`big_int` (MSVC/MASM)	380	230	39	2.4
`gmp_int` (GCC/GAS)	---	95	---	1

The relative performance improvement is significant; simply via creation of and inclusion of a single hand-coded assembly routine for schoolbook long multiplication.

An adaption of the program mul_big_int_vs_gmp_cpp.limbs.cpp has been used for this runtime result. The implementations of the assembly subroutines beman_big_int_multiply_long_runtime() for x86_64 using GCC(clang)/GAS and using MSVC/MASM can be found in multiply_long_runtime_x86_64_generic.s and multiply_long_runtime_x86_64_generic.asm, respectively.

At the moment, the assembly optimized routines can not be used within a constexpr context (nor with consteval). The use of beman_big_int_multiply_long_runtime() has been isolated exclusively to the runtime path. The constexpr path, however, remains available when compile-time evaluation is possible with no additional limitations imposed by the use of hand-coded assembly.

Squaring

Squaring has a companion routine, beman_big_int_square_long_runtime(), written in the same style and under the same constraints: baseline x86_64 instructions only, with no SSE, AVX, BMI2 or ADX. It builds each cross product a[i] * a[j] just once (the off-diagonal triangle), using the same rows as the multiplication routine but each row only as long as the limbs above a[i]. A single final pass then doubles the triangle and adds the diagonal squares a[i]^2, which roughly halves the widening multiplies of a general product. The routine handles x * x from square_long_cutoff limbs (5 on generic x86_64, 10 with the BMI2/ADX kernel) up to the Karatsuba squaring threshold and the leaves of the Karatsuba squaring recursion, so the Toom-Cook squaring tiers built on top of them speed up too. Below that, x * x keeps using the multiplication routine, which is as fast or faster there once the whole dispatch is measured. On architectures without a hand-coded kernel (anything other than x86_64 and AArch64), a portable C++ version of the same algorithm takes its place.

The table below compares the new routine with the two basecases that squares used before it: the portable C++ square_long, and the general assembly multiplication called with a * a (used for fewer than 8 limbs). Times are per square, measured on the same Intel® Core™ i9-11900K.

limbs	C++ `square_long` [ns]	ASM multiply `a * a` [ns]	ASM square [ns]
4	13	9	9
8	33	35	25
16	111	113	82
32	421	448	273
64	1549	1796	970

The implementations can be found in square_long_runtime_x86_64_generic.s and square_long_runtime_x86_64_generic.asm.

AArch64

The same basecase routines are available for AArch64, written against baseline ARMv8.0-A A64 instructions only, with no NEON, SVE, or LSE, so they run on any 64-bit Arm core. One GNU-syntax file assembles under both Linux ELF (GCC/clang) and Apple Mach-O (AppleClang); a companion armasm64 .asm file covers MSVC on Windows ARM64. Detection happens at compile time, alongside the existing x86_64 detection.

Once rows are at least 8 limbs long (the longer operand has 8 limbs, or 9 for squaring), both routines process two rows per pass. The second row trails the first by one four-limb block, aligned so that it only reads result limbs the first row has already finished with. The two rows' carry chains are independent, so the core overlaps them, hiding much of each row’s carry latency. Smaller operands, and an odd row left over at the end, use the one-row code.

The table below compares the portable C++ multiply_long against the assembly multiply_long_runtime, measured per operation on an Apple M4 Max (appleclang-release).

limbs	C++ `multiply_long` [ns]	ASM `multiply_long_runtime` [ns]
4	6	8
8	28	20
16	121	63
32	384	245
64	1659	953

Squaring follows the same design as the x86_64 routine: it builds the off-diagonal triangle once, then doubles it and adds the diagonal squares in a single pass. The table below compares the portable C++ square_long, the general assembly multiplication called with a * a, and the dedicated assembly square, all measured the same way on the same machine. As on x86_64, x * x below the squaring cutoff (4 limbs here) uses the multiplication routine.

limbs	C++ `square_long` [ns]	ASM multiply `a * a` [ns]	ASM square [ns]
4	12	8	6
8	36	19	18
16	85	66	55
32	295	241	163
64	899	946	548

The implementations can be found in multiply_long_runtime_aarch64_generic.S, multiply_long_runtime_aarch64_generic.asm, square_long_runtime_aarch64_generic.S, and square_long_runtime_aarch64_generic.asm.

With these basecases, AArch64 uses schoolbook multiplication up to 112 limbs (the shorter operand’s length) instead of 48, and the squaring basecase up to 168 limbs instead of 72. Both cutoffs, and the Karatsuba leaf size (80 limbs), were tuned end to end on the M4 Max, including unbalanced products; see the crossover table. The tables in this section were measured before that final tuning and show the kernels, not the dispatch.

NEON, SVE2 and SME

NEON has no 64 x 64 → 128-bit multiply, so a vector kernel has to split limbs into smaller digits. A prototype was measured and not adopted. It multiplied 32-bit by 16-bit digits with UMLAL, so that 64-bit lanes can accumulate column sums without overflow, and ran alongside scalar rows. On the M4 Max, the vector part alone reached 0.3 to 0.6 limb-products (64 x 64-bit partial products) per cycle at 16 to 47 limbs. The scalar routine reached 0.8 to 0.9. That put the expected gain from interleaving the two at only about 5 to 15 percent, and only near the top of the schoolbook range.

The scalar routine is already close to the core’s limit. The M4’s 64-bit multiplies and flag-setting additions compete for the same execution pipes, which caps a schoolbook row at about one cycle per limb-product.

SVE2’s add-with-carry-long instructions (ADCLB/ADCLT) are not available outside streaming mode on Apple cores. SME’s streaming mode adds a mode switch on every call and moves data through the L2 cache. Its outer products also produce individual partial products rather than the column sums that schoolbook multiplication needs.

Source programs

The programs behind these measurements live in tests/beman/big_int/perf.

Source file Description

Source file	Description
small_value_optimization.gbench.cpp	Google Benchmark comparison of `big_int` add/sub/mul/div against the builtin integer types, showcasing the small-value (inplace, no-allocation) optimization.
elliptic_ecc.perf.cpp	Elliptic-curve cryptography (ECDSA) overall performance gauge at modest limb counts.
mul_big_int_vs_gmp_cpp.perf.cpp	Multiplication performance with fixed limb counts and timing.
mul_big_int_vs_gmp_cpp.limbs.cpp	Multiplication performance with mixed limb counts, with timing and numerical-correctness checks.
div_big_int_vs_gmp_cpp.perf.cpp	Division performance with fixed limb counts and timing.
div_big_int_vs_gmp_cpp.limbs.cpp	Division performance with mixed limb counts, with timing and numerical-correctness checks.
shape_sweep.cpp	End-to-end timing harness used for tuning: multiplication, squaring and division through the public operators over a list of operand shapes (balanced and unbalanced), with residue checks and an optional GMP column. Built as the `beman.big_int.benchmarks.shape_sweep` target.
multiplication_stress_bench.test.cpp	Each multiplication and squaring tier (schoolbook kernels through FFT) forced at the top level on balanced operands; CSV output for `plot_crossover.py`.
division_stress_bench.test.cpp	The schoolbook, Burnikel-Ziegler and Barrett division kernels called directly on balanced, quotient-length and unbalanced shapes; CSV output for `plot_crossover.py --division`.
plot_crossover.py	Plots the tier timings and crossovers of multiplication, squaring and division, and fits their empirical complexity.
plot_vs_libraries.py	Plots `big_int` against `cpp_int` and `gmp_int` for multiplication and division.

small_value_optimization.gbench.cpp

Google Benchmark comparison of big_int add/sub/mul/div against the builtin integer types, showcasing the small-value (inplace, no-allocation) optimization.

elliptic_ecc.perf.cpp

Elliptic-curve cryptography (ECDSA) overall performance gauge at modest limb counts.

mul_big_int_vs_gmp_cpp.perf.cpp

Multiplication performance with fixed limb counts and timing.

mul_big_int_vs_gmp_cpp.limbs.cpp

Multiplication performance with mixed limb counts, with timing and numerical-correctness checks.

div_big_int_vs_gmp_cpp.perf.cpp

Division performance with fixed limb counts and timing.

div_big_int_vs_gmp_cpp.limbs.cpp

Division performance with mixed limb counts, with timing and numerical-correctness checks.

shape_sweep.cpp

End-to-end timing harness used for tuning: multiplication, squaring and division through the public operators over a list of operand shapes (balanced and unbalanced), with residue checks and an optional GMP column. Built as the beman.big_int.benchmarks.shape_sweep target.

multiplication_stress_bench.test.cpp

Each multiplication and squaring tier (schoolbook kernels through FFT) forced at the top level on balanced operands; CSV output for plot_crossover.py.

division_stress_bench.test.cpp

The schoolbook, Burnikel-Ziegler and Barrett division kernels called directly on balanced, quotient-length and unbalanced shapes; CSV output for plot_crossover.py --division.

plot_crossover.py

Plots the tier timings and crossovers of multiplication, squaring and division, and fits their empirical complexity.

plot_vs_libraries.py

Plots big_int against cpp_int and gmp_int for multiplication and division.

Edit this Page

Benchmarks

Small-value optimization: big_int vs the builtin integer types

Building and running

Results

Large integers: big_int vs Boost.Multiprecision and GMP

Choosing the x86-64 kernel configuration

Real-world gauge: ECDSA over secp256k1

Multiplication

Current crossovers

Tier-by-tier timings

Empirical complexity

big_int vs cpp_int vs gmp_int

Division

Tier-by-tier timings

big_int vs cpp_int vs gmp_int

Reproducing the measurements

Base conversion and string representations

Order-N operations

Architecture-specific optimizations

Squaring

AArch64

NEON, SVE2 and SME

Source programs

Small-value optimization: `big_int` vs the builtin integer types

Large integers: `big_int` vs Boost.Multiprecision and GMP

`big_int` vs `cpp_int` vs `gmp_int`

`big_int` vs `cpp_int` vs `gmp_int`
